SEALON Seal

ePTFE Spiral Wound Gasket Filler Material
SEALON Filler Material provides excellent gasket mechanical resistance and resilience for spiral wound gasket use

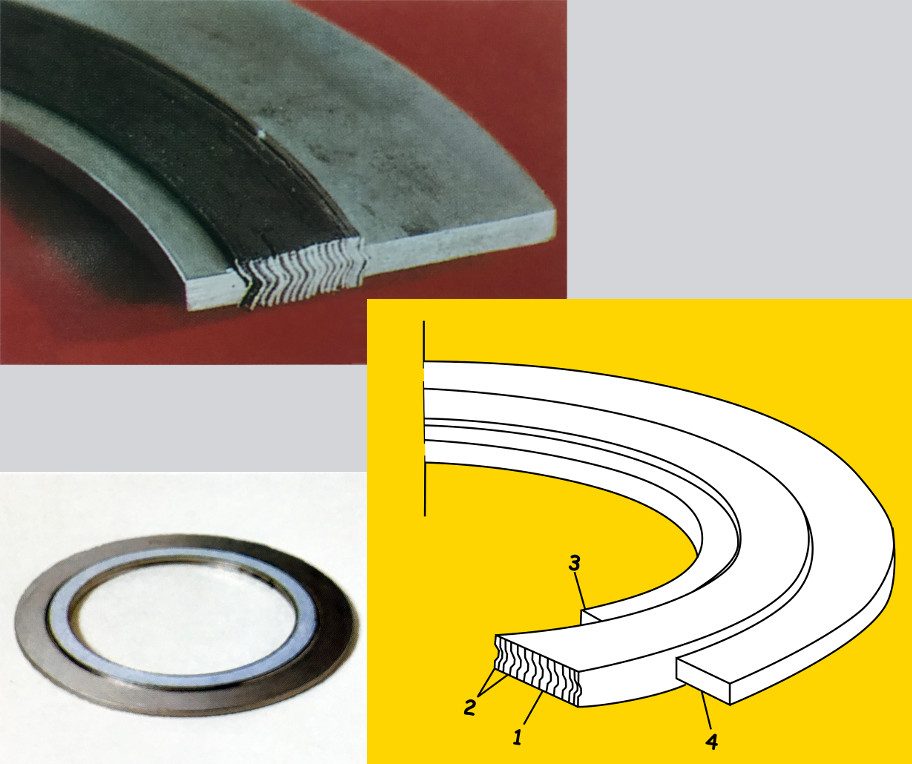

The spiral wound gasket has an outer and inner metal ring which holds in place a thin metal spiral, sandwiched with a non-metallic filler.

ePTFE with its special properties is one of the best filler to take up the flange compression, and compatible with the working fluid and service conditions.

These gaskets are normally used with raised face flanges and give an excellent seal due to the very long leakage path.

  • 100% expanded virgin PTFE
  • Good sealability
  • Good flexibility
  • Highly compressible
  • Will not age, harden, shrink or dry out in service
  • Unaffected by common chemicals, pH range 0-14
  • Non-contaminating, non-toxic
  • Using temperature from-450°F to+600°F.
  • Easy to cut and install
  • Can seal rough or damaged surface
  • PFOA Free products


Pressures and temperature capability are interdependent. Pressures up to 200 bar can be sealed at temperature around 110°F.


  Density (g/cm3)
0.75 1.4
Thickness 0.7 mm
1.0 mm
0.5 mm
Width 5.6 mm
8.2 mm
8.9 mm
76.2 mm
92 mm
150 mm
  • Length is available from 15 ~ 200M
  • Other sizes can be quoted.
