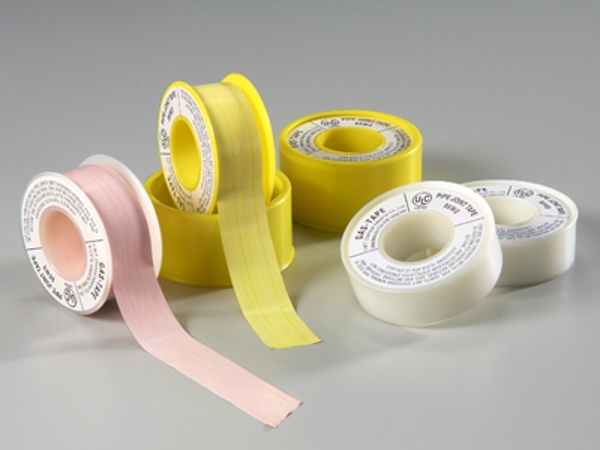

PTFE Seal Tape

PTFE Seal Tape
PTFE Seal Tape is made of soft, pliable, higher density PTFE resins and is easier to install and effect a seal, will not leak due to vibration or severe chemical contact.
A quick, convenient thread sealant is a non-corrosive, low coefficient of friction, odorless that stops leakage through threads. It can be natural white, cream yellow and pink color.

  • Low coefficient of friction, no valve drag
  • Temperature from -200℃ to +260℃
  • Virtually inert to all chemicals
  • Non-corrosive, non-flammable
  • Mold easily, lasts longer, easier to install
  • Self-lubricating
  • Minimum inventory required
  • No waste
  • PFOA Free product


Normally it can be used in piping system, and installed well for steam, salt water, air fuels, all acids, alkalies and solvent application. The high density tapes can be mostly used on natural gas, propane or butane and petroleum distillates.

Density ≥0.35 g/cm3 ≥0.6 g/cm3 ≥1.0 g/cm3
Thickness 0.075mm, 0.1mm 0.1mm 0.1mm
0.0035", 0.0040" 0.0040" 0.0040"
Width 12mm, 13mm, 19mm, 25mm 12mm, 13mm, 19mm, 25mm 12mm, 19mm, 25mm
1/2", 3/4", 1" 1/2", 3/4", 1" 1/2", 3/4", 1"
Length 10M, 12M, 15M 10M, 12M, 15M 10M, 12M
260", 480", 520", 600", 1296" 260", 480", 520", 600", 1296" 260", 480", 520", 600"
Certs
  • UL Approval
    (Control No. 33BH)
  • Meet BS 7786 /1995
    (Replace BS4375)
  • Meet MIL-T-27730A/1962
  • UL Approval
    (Control No. 33BH)
  • Meet BS 7786 /1995
    (Replace BS4375)
  • Meet DIN EN751-3 standard
  • Meet MIL-T-27730A/1962
  • UL Approval
    (Control No. 33BH)
  • ULC Approval
    (Control No. 96W0)
  • CSA: Certificate of Compliance 1222774
  • JIS マーク表示制度認証書 JQTW08008
  • Meet MIL-T-27730A/1962
  • Meet AA-58092/1997
Density ≥0.35 g/cm3
Thickness 0.075mm, 0.1mm
0.0035", 0.0040"
Width 12mm, 13mm, 19mm, 25mm
1/2", 3/4", 1"
Length 10M, 12M, 15M
260", 480", 520", 600", 1296"
Certs
  • UL Approval
    (Control No. 33BH)
  • Meet BS 7786 /1995
    (Replace BS4375)
  • Meet MIL-T-27730A/1962
Density ≥0.6 g/cm3
Thickness 0.1mm
0.0040"
Width 12mm, 13mm, 19mm, 25mm
1/2", 3/4", 1"
Length 10M, 12M, 15M
260", 480", 520", 600", 1296"
Certs
  • UL Approval
    (Control No. 33BH)
  • Meet BS 7786 /1995
    (Replace BS4375)
  • Meet DIN EN751-3 standard
  • Meet MIL-T-27730A/1962
Density ≥1.0 g/cm3
Thickness 0.1mm
0.0040"
Width 12mm, 19mm, 25mm
1/2", 3/4", 1"
Length 10M, 12M
260", 480", 520", 600"
Certs
  • UL Approval
    (Control No. 33BH)
  • ULC Approval
    (Control No. 96W0)
  • CSA: Certificate of Compliance 1222774
  • JIS マーク表示制度認証書 JQTW08008
  • Meet MIL-T-27730A/1962
  • Meet AA-58092/1997

  • For High Density tapes: For use on threaded tape, in assemblies handling natural gas & methane, propane & Butane, and petroleum distillates (pressures not exceeding 15,514 KPa (2,250 psi).
  • For Low & Medium Density tapes: Low Density (style 1102): For use on threaded tape, in propane, butane, natural gas (pressures not over 100 psi).
  • Medium Density (style 1102M) tapes: For use on threaded tape, in propane, butane, natural gas (pressures not over 300 psi).
